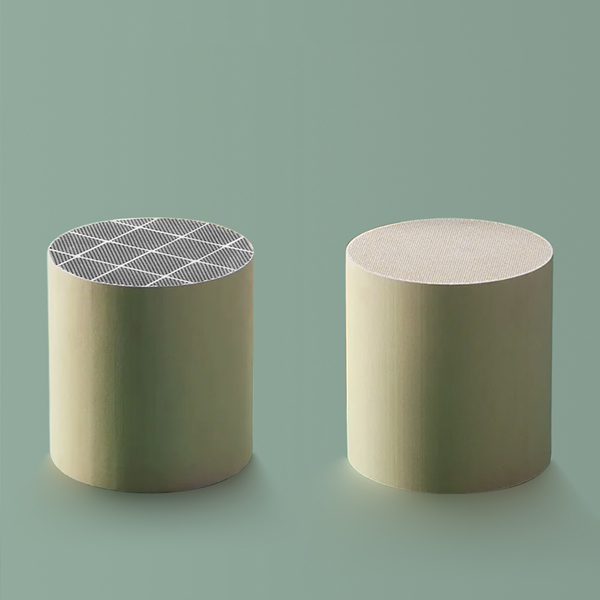

What are the differences between the two types of DPFs' monolith cordierite and silicon carbide

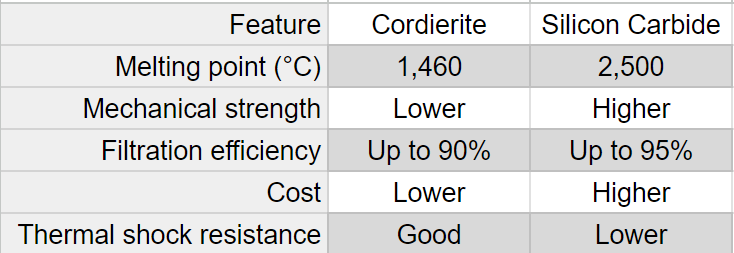

Cordierite and silicon carbide are the two main materials used for the carrier of diesel particulate filters (DPFs). While both are ceramic materials, they have distinct properties that make them suitable for different applications. Here's a breakdown of their key differences:

Cordierite:

• Pros:

• Lower cost: Cordierite is cheaper than silicon carbide, making it a more affordable option for DPFs.

• Good thermal shock resistance: Cordierite can withstand sudden temperature changes, making it suitable for DPFs exposed to high exhaust temperatures.

• Good filtration efficiency: Cordierite filters can remove up to 90% of particulate matter from engine exhaust.

• Cons:

• Lower melting point: Cordierite has a melting point of around 1,460°C (2,660°F). This can be an issue for high-performance engines that generate higher exhaust temperatures.

• Lower mechanical strength: Cordierite is less durable than silicon carbide and may be more prone to cracking or breaking.

Silicon Carbide:

• Pros:

• Higher melting point: Silicon carbide has a melting point of around 2,500°C (4,532°F). This makes it ideal for DPFs used in high-performance engines or those that operate in harsh environments.

• Higher mechanical strength: Silicon carbide is more durable than cordierite and can withstand higher pressures and vibrations.

• Higher filtration efficiency: Silicon carbide filters can remove up to 95% of particulate matter from engine exhaust.

• Cons:

• Higher cost: Silicon carbide is more expensive than cordierite, making it a less cost-effective choice for some applications.

• Lower thermal shock resistance: Silicon carbide is not as resistant to sudden changes in temperature as cordierite.

Choosing between cordierite and silicon carbide:

The best choice for a DPF carrier depends on several factors, including:

• Engine type: High-performance engines or those operating in harsh environments may require the higher melting point and mechanical strength of silicon carbide.

• Budget: Cordierite is a more affordable option for budget-conscious applications.

• Filtration efficiency: If the highest possible filtration efficiency is required, silicon carbide may be the better choice.
